The Columns in EXPLAIN

EXPLAIN’s output always has the same columns (except for EXPLAIN EXTENDED, which adds a filtered column in MySQL 5.1, and EXPLAIN PARTITIONS, which adds a partitions column). The variability is in the number and contents of the rows. However, to keep our examples clear, we don’t always show all columns in this appendix.

In the following sections, we show you the meaning of each of the columns in an EXPLAIN result. Keep in mind that the rows in the output come in the order in which MySQL actually executes the parts of the query, which is not always the same as the order in which they appear in the original SQL.

The id Column

This column always contains a number, which identifies the SELECT to which the row belongs. If there are no subqueries or unions in the statement, there is only one SELECT, so every row will show a 1 in this column. Otherwise, the inner SELECT statements generally will be numbered sequentially, according to their positions in the original statement.

MySQL divides SELECT queries into simple and complex types, and the complex types can be grouped into three broad classes: simple subqueries, so-called derived tables (subqueries in the FROM clause),^[228^] and UNIONs. Here’s a simple subquery:

mysql> EXPLAIN SELECT (SELECT 1 FROM sakila.actor LIMIT 1) FROM sakila.film;

+----+-------------+-------+...

| id | select_type | table |...

+----+-------------+-------+...

| 1 | PRIMARY | film |...

| 2 | SUBQUERY | actor |...

+----+-------------+-------+...

Subqueries in the FROM clause and UNIONs add more complexity to the id column. Here’s a basic subquery in the FROM clause:

mysql> EXPLAIN SELECT film_id FROM (SELECT film_id FROM sakila.film) AS der;

+----+-------------+------------+...

| id | select_type | table |...

+----+-------------+------------+...

| 1 | PRIMARY | <derived2> |...

| 2 | DERIVED | film |...

+----+-------------+------------+...

As you know, this query is executed with an anonymous temporary table. MySQL internally refers to the temporary table by its alias (der) within the outer query, which you can see in the ref column in more complicated queries.

Finally, here’s a UNION query:

mysql> EXPLAIN SELECT 1 UNION ALL SELECT 1;

+------+--------------+------------+...

| id | select_type | table |...

+------+--------------+------------+...

| 1 | PRIMARY | NULL |...

| 2 | UNION | NULL |...

| NULL | UNION RESULT | <union1,2> |...

+------+--------------+------------+...

Note the extra row in the output for the result of the UNION. UNION results are always placed into an anonymous temporary table, and MySQL then reads the results back out of the temporary table. The temporary table doesn’t appear in the original SQL, so its id column is NULL. In contrast to the preceding example (illustrating a subquery in the FROM clause), the temporary table that results from this query is shown as the last row in the results, not the first.

So far this is all very straightforward, but mixtures of these three categories of statements can cause the output to become more complicated, as we’ll see a bit later.

The select_type Column

This column shows whether the row is a simple or complex SELECT (and if it’s the latter, which of the three complex types it is). The value SIMPLE means the query contains no subqueries or UNIONs. If the query has any such complex subparts, the outermost part is labeled PRIMARY, and other parts are labeled as follows:

SUBQUERY

A SELECT that is contained in a subquery in the SELECT list (in other words, not in the FROM clause) is labeled as SUBQUERY.

DERIVED

The value DERIVED is used for a SELECT that is contained in a subquery in the FROM clause, which MySQL executes recursively and places into a temporary table. The server refers to this as a “derived table” internally, because the temporary table is derived from the subquery.

UNION

The second and subsequent SELECTs in a UNION are labeled as UNION. The first SELECT is labeled as though it is executed as part of the outer query. This is why the previous example showed the first SELECT in the UNION as PRIMARY. If the UNION were contained in a subquery in theFROM clause, its first SELECT would be labeled as DERIVED.

UNION RESULT

The SELECT used to retrieve results from the UNION’s anonymous temporary table is labeled as UNION RESULT.

In addition to these values, a SUBQUERY and a UNION can be labeled as DEPENDENT and UNCACHEABLE. DEPENDENT means the SELECT depends on data that is found in an outer query; UNCACHEABLE means something in the SELECT prevents the results from being cached with anItem_cache. (Item_cache is undocumented; it is not the same thing as the query cache, although it can be defeated by some of the same types of constructs, such as the RAND() function.)

The table Column

This column shows which table the row is accessing. In most cases, it’s straightforward: it’s the table, or its alias if the SQL specifies one.

You can read this column from top to bottom to see the join order MySQL’s join optimizer chose for the query. For example, you can see that MySQL chose a different join order than the one specified for the following query:

mysql> EXPLAIN SELECT film.film_id

-> FROM sakila.film

-> INNER JOIN sakila.film_actor USING(film_id)

-> INNER JOIN sakila.actor USING(actor_id);

+----+-------------+------------+...

| id | select_type | table |...

+----+-------------+------------+...

| 1 | SIMPLE | actor |...

| 1 | SIMPLE | film_actor |...

| 1 | SIMPLE | film |...

+----+-------------+------------+...

Remember the left-deep tree diagrams we showed in Chapter 6? MySQL’s query execution plans are always left-deep trees. If you flip the plan on its side, you can read off the leaf nodes in order, and they’ll correspond directly to the rows in EXPLAIN. The plan for the preceding query looks like Figure D-1.

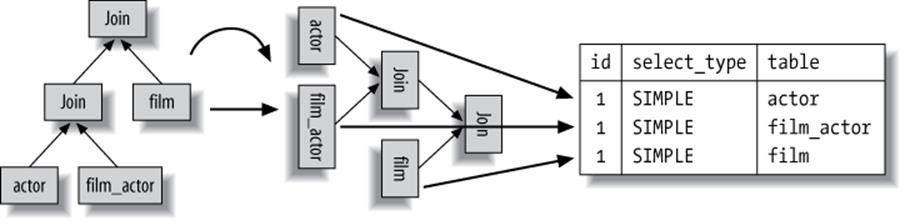

Figure D-1. How the query execution plan corresponds to the rows in EXPLAIN

Derived tables and unions

The table column becomes much more complicated when there is a subquery in the FROM clause or a UNION. In these cases, there really isn’t a “table” to refer to, because the anonymous temporary table MySQL creates exists only while the query is executing.

When there’s a subquery in the FROM clause, the table column is of the form <derivedN>, where N is the subquery’s id. This is always a “forward reference”—in other words, N refers to a later row in the EXPLAIN output.

When there’s a UNION, the UNION RESULT table column contains a list of ids that participate in the UNION. This is always a “backward reference,” because the UNION RESULT comes after all of the rows that participate in the UNION. If there are more than about 20 ids in the list, thetable column might be truncated to keep it from getting too long, and you won’t be able to see all the values. Fortunately, you can still deduce which rows were included, because you’ll be able to see the first row’s id. Everything that comes between that row and the UNION RESULT is included in some way.

An example of complex SELECT types

Here’s a nonsense query that serves as a fairly compact example of some of the complex SELECT types:

1 EXPLAIN

2 SELECT actor_id,

3 (SELECT 1 FROM sakila.film_actor WHERE film_actor.actor_id =

4 der_1.actor_id LIMIT 1)

5 FROM (

6 SELECT actor_id

7 FROM sakila.actor LIMIT 5

8 ) AS der_1

9 UNION ALL

10 SELECT film_id,

11 (SELECT @var1 FROM sakila.rental LIMIT 1)

12 FROM (

13 SELECT film_id,

14 (SELECT 1 FROM sakila.store LIMIT 1)

15 FROM sakila.film LIMIT 5

16 ) AS der_2;

The LIMIT clauses are just for convenience, in case you wish to execute the query without EXPLAIN and see the results. Here is the result of the EXPLAIN:

+------+----------------------+------------+...

| id | select_type | table |...

+------+----------------------+------------+...

| 1 | PRIMARY | <derived3> |...

| 3 | DERIVED | actor |...

| 2 | DEPENDENT SUBQUERY | film_actor |...

| 4 | UNION | <derived6> |...

| 6 | DERIVED | film |...

| 7 | SUBQUERY | store |...

| 5 | UNCACHEABLE SUBQUERY | rental |...

| NULL | UNION RESULT | <union1,4> |...

+------+----------------------+------------+...

We’ve been careful to make each part of the query access a different table, so you can see what goes where, but it’s still hard to figure out! Taking it from the top:

§ The first row is a forward reference to der_1, which the query has labeled as <derived3>. It comes from line 2 in the original SQL. To see which rows in the output refer to SELECT statements that are part of <derived3>, look forward ...

§ ...to the second row, whose id is 3. It is 3 because it’s part of the third SELECT in the query, and it’s listed as a DERIVED type because it’s nested inside a subquery in the FROM clause. It comes from lines 6 and 7 in the original SQL.

§ The third row’s id is 2. It comes from line 3 in the original SQL. Notice that it comes after a row with a higher id number, suggesting that it is executed afterward, which makes sense. It is listed as a DEPENDENT SUBQUERY, which means its results depend on the results of an outer query (also known as a correlated subquery). The outer query in this case is the SELECT that begins in line 2 and retrieves data from der_1.

§ The fourth row is listed as a UNION, which means it is the second or later SELECT in a UNION. Its table is <derived6>, which means it’s retrieving data from a subquery in the FROM clause and appending to a temporary table for the UNION. As before, to find the EXPLAIN rows that show the query plan for this subquery, you must look forward.

§ The fifth row is the der_2 subquery defined in lines 13, 14, and 15 in the original SQL, which EXPLAIN refers to as <derived6>.

§ The sixth row is an ordinary subquery in <derived6>’s SELECT list. Its id is 7, which is important...

§ ...because it is greater than 5, which is the seventh row’s id. Why is this important? Because it shows the boundaries of the <derived6> subquery. When EXPLAIN outputs a row whose SELECT type is DERIVED, it represents the beginning of a “nested scope.” If a subsequent row’s id is smaller (in this case, 5 is smaller than 6 ), it means the nested scope has closed. This lets us know that the seventh row is part of the SELECT list that is retrieving data from <derived6>—i.e., part of the fourth row’s SELECT list (line 11 in the original SQL). This example is fairly easy to understand without knowing the significance and rules of nested scopes, but sometimes it’s not so easy. The other notable thing about this row in the output is that it is listed as an UNCACHEABLE SUBQUERY because of the user variable.

§ Finally, the last row is the UNION RESULT. It represents the stage of reading the rows from the UNION’s temporary table. You can begin at this row and work backward if you wish; it is returning results from rows whose ids are 1 and 4, which are in turn references to <derived3> and<derived6>.

As you can see, the combination of these complicated SELECT types can result in EXPLAIN output that’s pretty difficult to read. Understanding the rules makes it easier, but there’s no substitute for practice.

Reading EXPLAIN’s output often requires you to jump forward and backward in the list. For example, look again at the first row in the output. There is no way to know just by looking at it that it is part of a UNION. You’ll only see that when you read the last row of the output.

The type Column

The MySQL manual says this column shows the “join type,” but we think it’s more accurate to say the access type—in other words, how MySQL has decided to find rows in the table. Here are the most important access methods, from worst to best:

ALL

This is what most people call a table scan. It generally means MySQL must scan through the table, from beginning to end, to find the row. (There are exceptions, such as queries with LIMIT or queries that display “Using distinct/not exists” in the Extra column.)

index

This is the same as a table scan, except MySQL scans the table in index order instead of the rows. The main advantage is that this avoids sorting; the biggest disadvantage is the cost of reading an entire table in index order. This usually means accessing the rows in random order, which is very expensive.

If you also see “Using index” in the Extra column, it means MySQL is using a covering index and scanning only the index’s data, not reading each row in index order. This is much less expensive than scanning the table in index order.

range

A range scan is a limited index scan. It begins at some point in the index and returns rows that match a range of values. This is better than a full index scan because it doesn’t go through the entire index. Obvious range scans are queries with a BETWEEN or > in the WHERE clause.

When MySQL uses an index to look up lists of values, such as IN() and OR lists, it also displays it as a range scan. However, these are quite different types of accesses, and they have important performance differences. See the sidebar What Is a Range Condition? in Chapter 5 for more information.

The same cost considerations apply for this type as for the index type.

ref

This is an index access (sometimes called an index lookup) that returns rows that match a single value. However, it might find multiple rows, so it’s a mixture of a lookup and a scan. This type of index access can happen only on a nonunique index or a nonunique prefix of a unique index. It’s called ref because the index is compared to some reference value. The reference value is either a constant or a value from a previous table in a multiple-table query.

The ref_or_null access type is a variation on ref. It means MySQL must do a second lookup to find NULL entries after doing the initial lookup.

eq_ref

This is an index lookup that MySQL knows will return at most a single value. You’ll see this access method when MySQL decides to use a primary key or unique index to satisfy the query by comparing it to some reference value. MySQL can optimize this access type very well, because it knows it doesn’t have to estimate ranges of matching rows or look for more matching rows after it finds one.

const, system

MySQL uses these access types when it can optimize away some part of the query and turn it into a constant. For example, if you select a row’s primary key by placing its primary key into the WHERE clause, MySQL can convert the query into a constant. It then effectively removes the table from the join execution.

NULL

This access method means MySQL can resolve the query during the optimization phase and will not even access the table or index during the execution stage. For example, selecting the minimum value from an indexed column can be done by looking at the index alone and requires no table access during execution.

The possible_keys Column

This column shows which indexes could be used for the query, based on the columns the query accesses and the comparison operators used. This list is created early in the optimization phase, so some of the indexes listed might be useless for the query after subsequent optimization phases.

The key Column

This column shows which index MySQL decided to use to optimize the access to the table. If the index doesn’t appear in possible_keys, MySQL chose it for another reason—for example, it might choose a covering index even when there is no WHERE clause.

In other words, possible_keys reveals which indexes can help make row lookups efficient, but key shows which index the optimizer decided to use to minimize query cost (see Chapter 6 for more on the optimizer’s cost metrics). Here’s an example:

mysql> EXPLAIN SELECT actor_id, film_id FROM sakila.film_actor\G

*************************** 1. row ***************************

id: 1

select_type: SIMPLE

table: film_actor

type: index

possible_keys: NULL

key: idx_fk_film_id

key_len: 2

ref: NULL

rows: 5143

Extra: Using index

The key_len Column

This column shows the number of bytes MySQL will use in the index. If MySQL is using only some of the index’s columns, you can use this value to calculate which columns it uses. Remember that MySQL 5.5 and older versions can use only the leftmost prefix of the index. For example,sakila.film_actor’s primary key covers two SMALLINT columns, and a SMALLINT is two bytes, so each tuple in the index is four bytes. Here’s a sample query:

mysql> EXPLAIN SELECT actor_id, film_id FROM sakila.film_actor WHERE actor_id=4;

...+------+---------------+---------+---------+...

...| type | possible_keys | key | key_len |...

...+------+---------------+---------+---------+...

...| ref | PRIMARY | PRIMARY | 2 |...

...+------+---------------+---------+---------+...

Based on the key_len column in the result, you can deduce that the query performs index lookups with only the first column, the actor_id. When calculating column usage, be sure to account for character sets in character columns:

mysql> CREATE TABLE t (

-> a char(3) NOT NULL,

-> b int(11) NOT NULL,

-> c char(1) NOT NULL,

-> PRIMARY KEY (a,b,c)

-> ) ENGINE=MyISAM DEFAULT CHARSET=utf8 ;

mysql> INSERT INTO t(a, b, c)

-> SELECT DISTINCT LEFT(TABLE_SCHEMA, 3), ORD(TABLE_NAME),

-> LEFT(COLUMN_NAME, 1)

-> FROM INFORMATION_SCHEMA.COLUMNS:

mysql> EXPLAIN SELECT a FROM t WHERE a='sak' AND b = 112;

...+------+---------------+---------+---------+...

...| type | possible_keys | key | key_len |...

...+------+---------------+---------+---------+...

...| ref | PRIMARY | PRIMARY | 13 |...

...+------+---------------+---------+---------+...

The length of 13 bytes in this query is the sum of the lengths of the a and b columns. Column a is three characters, which in utf8 require up to three bytes each, and column b is a four-byte integer.

MySQL doesn’t always show you how much of an index is really being used. For example, if you perform a LIKE query with a prefix pattern match, it will show that the full width of the column is being used.

The key_len column shows the maximum possible length of the indexed fields, not the actual number of bytes the data in the table used. MySQL will always show 13 bytes in the preceding example, even if column a happens to contain no values more than one character long. In other words, key_len is calculated by looking at the table’s definition, not the data in the table.

The ref Column

This column shows which columns or constants from preceding tables are being used to look up values in the index named in the key column. Here’s an example that shows a combination of join conditions and aliases. Notice that the ref column reflects how the film table is aliased as f in the query text:

mysql> EXPLAIN

-> SELECT STRAIGHT_JOIN f.film_id

-> FROM sakila.film AS f

-> INNER JOIN sakila.film_actor AS fa

-> ON f.film_id=fa.film_id AND fa.actor_id = 1

-> INNER JOIN sakila.actor AS a USING(actor_id);

...+-------+...+--------------------+---------+------------------------+...

...| table |...| key | key_len | ref |...

...+-------+...+--------------------+---------+------------------------+...

...| a |...| PRIMARY | 2 | const |...

...| f |...| idx_fk_language_id | 1 | NULL |...

...| fa |...| PRIMARY | 4 | const,sakila.f.film_id |...

...+-------+...+--------------------+---------+------------------------+...

The rows Column

This column shows the number of rows MySQL estimates it will need to read to find the desired rows. This number is per loop in the nested-loop join plan. That is, it’s not just the number of rows MySQL thinks it will need to read from the table; it is the number of rows, on average, MySQL thinks it will have to read to find rows that satisfy the criteria in effect at that point in query execution. (The criteria include constants given in the SQL as well as the current columns from previous tables in the join order.)

This estimate can be quite inaccurate, depending on the table statistics and how selective the indexes are. It also doesn’t reflect LIMIT clauses in MySQL 5.0 and earlier. For example, the following query will not examine 1,022 rows:

mysql> EXPLAIN SELECT * FROM sakila.film LIMIT 1\G

...

rows: 1022

You can calculate roughly the number of rows the entire query will examine by multiplying all the rows values together. For example, the following query might examine approximately 2,600 rows:

mysql> EXPLAIN

-> SELECT f.film_id

-> FROM sakila.film AS f

-> INNER JOIN sakila.film_actor AS fa USING(film_id)

-> INNER JOIN sakila.actor AS a USING(actor_id);

...+------+...

...| rows |...

...+------+...

...| 200 |...

...| 13 |...

...| 1 |...

...+------+...

Remember, this is the number of rows MySQL thinks it will examine, not the number of rows in the result set. Also realize that there are many optimizations, such as join buffers and caches, that aren’t factored into the number of rows shown. MySQL will probably not have to actually read every row it predicts it will. MySQL also doesn’t know anything about the operating system or hardware caches.

The filtered Column

This column is new in MySQL 5.1 and appears when you use EXPLAIN EXTENDED. It shows a pessimistic estimate of the percentage of rows that will satisfy some condition on the table, such as a WHERE clause or a join condition. If you multiply the rows column by this percentage, you will see the number of rows MySQL estimates it will join with the previous tables in the query plan. At the time of this writing, the optimizer uses this estimate only for the ALL, index, range, and index_merge access methods.

To illustrate this column’s output, we created a table as follows:

CREATE TABLE t1 (

id INT NOT NULL AUTO_INCREMENT,

filler char(200),

PRIMARY KEY(id)

);

We then inserted 1,000 rows into this table, with random text in the filler column. Its purpose is to prevent MySQL from using a covering index for the query we’re about to run:

mysql> EXPLAIN EXTENDED SELECT * FROM t1 WHERE id < 500\G

*************************** 1. row ***************************

id: 1

select_type: SIMPLE

table: t1

type: ALL

possible_keys: PRIMARY

key: NULL

key_len: NULL

ref: NULL

rows: 1000

filtered: 49.40

Extra: Using where

MySQL could use a range access to retrieve all rows with IDs less than 500 from the table, but it won’t because that would eliminate only about half the rows. It thinks a table scan is less expensive. As a result, it uses a table scan and a WHERE clause to filter out rows. It knows how many rows the WHERE clause will remove from the result, because of the range access cost estimates. That’s why the 49.40% value appears in the filtered column.

The Extra Column

This column contains extra information that doesn’t fit into other columns. The MySQL manual documents most of the many values that can appear here; we have referred to many of them throughout this book.

The most important values you might see frequently are as follows:

“Using index”

This indicates that MySQL will use a covering index to avoid accessing the table. Don’t confuse covering indexes with the index access type.

“Using where”

This means the MySQL server will post-filter rows after the storage engine retrieves them. Many WHERE conditions that involve columns in an index can be checked by the storage engine when (and if) it reads the index, so not all queries with a WHERE clause will show “Using where.” Sometimes the presence of “Using where” is a hint that the query can benefit from different indexing.

“Using temporary”

This means MySQL will use a temporary table while sorting the query’s result.

“Using filesort”

This means MySQL will use an external sort to order the results, instead of reading the rows from the table in index order. MySQL has two filesort algorithms, which you can read about in Chapter 6. Either type can be done in memory or on disk. EXPLAIN doesn’t tell you which type of filesort MySQL will use, and it doesn’t tell you whether the sort will be done in memory or on disk.

“Range checked for each record (index map: N)”

This value means there’s no good index, and the indexes will be reevaluated for each row in a join. N is a bitmap of the indexes shown in possible_keys and is redundant.
